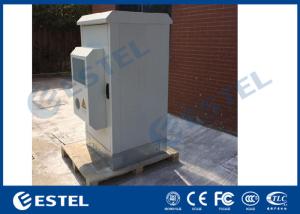

30U Outdoor Equipment Cabinet Galvanized Steel Single Wall With Heat Insulation

  • 1
  • 2

Brand Name : ESTEL

Model Number : 121090916050003

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 5,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

External size : W*D*H 900*900*1600mm

Material : Galvanized, single wall with insulation

Cabinet Lock : Anti-theft three point lock(support padlock)

Cable Inlets : From cabinet bottom

Mounting type : Floor mount

Cooling system : Air Conditioner and fan

Certificates : CE

Protection Level : IP55

Contact Now

30U Outdoor Electrical Cabinets Galvanized Steel Single Wall With Heat Insulation

1. Technical Parameters

External Size W*D*H 900*900*1600mm.
Material Galvanized steel,single wall,with thermal insulation.

Cabinet Layout

One compartment for installing 19” equipment
Component The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted.
Protection Level IP55
Cabinet Inlets From cabinet bottom
Illumination/lighting DC48V LED lamp
Heat Insulation PEF
Grounding Protection Copper bar
Color Light Grey
Air conditioner

Cooling Capacity:1000W

Power Supply: 220VAC,50Hz
Fan -48VAC
Accessories Options PDU, Environment monitoring system optional
Alarm sensors The door sensor, water sensor, smoke sensor, temperature and humidity sensor
Flame retardant Comply with GB5169.7 test A
Door type With 1 front door
Cabinet Lock Anti-theft three point lock(support padlock)
Package Wooden case with pallets
Certificates CE

2. Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: H*W*D 900*900*1600mm;

(2) 1 compartment,:equipment compartment;

(3) With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) ;

(4) Material: galvanized steel; single wall ;
2 Air Conditioner 1 Set

Cooling capacity: 1000W,

Power supply: AC220V, 50HZ;
3 Auxiliary Direct Ventilation Fans 2 PC DC48V
4 Door Sensor 1 PC For controlling LED lamp
5 LED Lamp 1 PC DC48V
6 Power Distribution Unit 1 Set Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4
7 Package 1 Set Wooden Case

3. Cabinet Features

  1. The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  2. The equipment compartment cooling: fans and air conditioner. (Other cooling option: heat exchanger).
  3. The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  4. There are entrance holes individually for power cable, signal cable and optical cable.
  5. All the cables used in the cabinet are made from flame retardant materials.

4.Cooling System Pictures

The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.

  • Cooling Capacity:1000W
  • Power Supply: 220VAC,50Hz

30U Outdoor Equipment Cabinet Galvanized Steel Single Wall With Heat Insulation

5. Prodcution Pictures

6. Delivery Time

Usually about 10-15 days. The exact lead time need to be confirmed according to the quantity of order.
