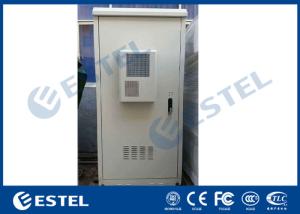

Galvanized Steel Outdoor Electronic Equipment Enclosures Single Wall Front Rear Access

  • 1
  • 2
  • 3

Brand Name : ESTEL

Model Number : 121090918050001

Certification : ISO9001, CE, 3C, FCC, TLC, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case with pallets

Material : Galvanize steel, single wall with insulation

Door type : With one front door and one back door

Environment Monitoring Unit : 1U, DC48V

Power Distribution unit : Grade B Lightning Proof

Alarm sensors : Water Sensor, Smoke Sensor, Temperature and Humidity Sensor ,Shock Sensor ,Door Sensor

Ingress Protection : IP55

Temperature Control : Air conditioners

Package : Wooden case with pallets

Contact Now

Outdoor Telecom Equipment Cabinet Galvanized Steel Single Wall Front Rear Access

1. Cabinet Parameters

Items Technical Parameter
Dimension

External Dimension:

W×D×H 900×900×1800mm

Internal Dimension:

W×D×H 800×800×1600mm

Layout 1 compartment
Equipment Installation Method 19” rack
Doors With one front door and one back door ,and anti-theft three point lock for outdoor cabinet (support padlock).
Material Galvanized steel, single wall with insulation
Ingress Protection IP55
Temperature Control One air conditioner installed on the front door
Lighting 48V LED lamps
Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Solar Radiation Intensity 1120 ×(1±5%)W/m2
Environment Monitoring Unit 1U, DC48V
Alarm sensors Water sensor Smoke sensor Temperature and Humidity sensor Shock sensor Door sensor
Power Distribution Unit Grade B Lightning Proof
Package Wooden Case with pallets

2. Cabinet Features

  • Cabinet material is galvanized steel, single wall with insulation
  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling system: air conditioners
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.
  • Protection grade :IP55.
  • Security design: Embedded doors, embedded hinges, 3-point security locks.

3. Grounding Protection

(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

(2)The metal part of the cabinet should be interconnected and be connected with grounding bar.

(3)Connection resistance between any two points is lower than 0.1Ω.

(4)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

4. Cable Inlets

The cable inlets are at the bottom of the cabinet.

Galvanized Steel Outdoor Electronic Equipment Enclosures Single Wall Front Rear Access

5. Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

6. Related Pictuers

Galvanized Steel Outdoor Electronic Equipment Enclosures Single Wall Front Rear Access

7. Package and shipping

7. 1Package

The cabinet is packed in the wooden case or customized type package.

7.2 Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
