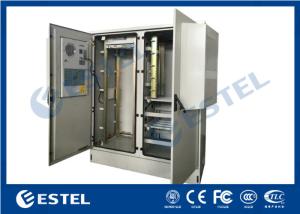

Two Bay Structure Outdoor Telecom Cabinet Galvanized Steel PEF Heat Insulation

Name: Two Bay Structure Outdoor Telecom Cabinet Galvanized Steel PEF Heat Insulation
Brand: ESTEL
Price: 1 USD

Wholesale Two Bay Structure Outdoor Telecom Cabinet Galvanized Steel PEF Heat Insulation from china suppliers

Brand Name : ESTEL

Model Number : 333160818050001

Certification : ISO9001,CE,3C,FCC,TLC,IP55

Place of Origin : Place of Origin: Shenzhen,China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Material : Galvanized steel

Structure : 2 bays

Layout : 2 bays with middle division plate.

Heat Insulation : PEF

Cooling System : 2pcs DC2000W air conditioners

Alarm Sensors : Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor

Doors : With 2 front doors, and anti-theft three point lock for outdoor cabinet (support padlock)

Protection Level : IP65

Contact Now

IP65 Two Bay Outdoor Telecom Enclosure Air Conditioner Cooling Cabinet

1. Cabinet Description

Double Bay Outdoor Enclosure offers standard 19” racking rails, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.

2. Cabinet Parameters

External Size	WDH 16008001800mm
Material	Double wall with insulation, Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate.
Structure	2 compartments (separated left compartment and right compartment), with middle division plate.
IP protection	IP65
Cable Entr	From cabinet bottom
Illumination	DC48V LED lamp
Heat Insulation	PEF
Grounding Protection	Copper bar
Color	Grey (support custom made)
Cooling System	2 pcs 2000W Air Conditioner
Coating	Anti-corrosion outdoor powder coating
Accessories Options	PDU, Environment monitoring system,Generator power distribution box,UPS,Battery.
Switching Mode Power Supply	Available upon request
Alarm sensors	The door sensor, water sensor, smoke sensor, temperature and humidity sensor
Flame retardant	Comply with GB5169.7 test A
Door type	2 front doors, and anti-theft three point lock for outdoor cabinet (support padlock)
Cabinet Lock	Anti-theft three point lock(support padlock)
Package	Wooden case with pallets
Certificates	CE
Environment Monitoring Unit	1U, DC48V

3. Product Operating Environment

Working Temperature:-20~+60ºC
Storage Temperature:-40~+65ºC
Working relative humidity: no more than 80% (at +30 ° C))
Storage relative humidity: ≤90%~96% (40°C±2°C)
Atmospheric pressure: 70kpa~106kPa.

4. Product Features

This series cabinets suitable for a variety of outdoor environments.
Waterproof, Anti-corrosion,Durable
IP degree: IP55,IP65
Variety material optional:Galvanized sheet,Stainless Steel,Aluminum
Variety cooling options to choose,Fans,Air condition,Heat exchange
Floor mounting,wall mounting,pole mounting.
Various sensors,power distribution box,monitor,battery,etc,Optional.
Accept customized product.

5. Cabinet Package

Product Tags:

telecom equipment cabinet

outdoor telecom enclosure

Two Bay Structure Outdoor Telecom Cabinet Galvanized Steel PEF Heat Insulation Images
