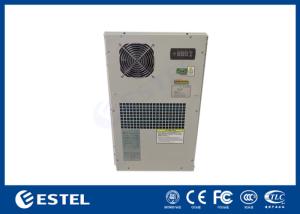

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

Brand Name : ESTEL

Model Number : E142020500

Certification : ISO9001, CE, 3C, FCC, ROHS, IP55

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C,D/A, Western Union, Paypal, etc

Supply Ability : 8,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Type : Outdoor Cabinet Air Conditioner

Mounting method : Door Mounted

Ingress protection : IP55

Input voltage range : 220±15%VAC~60Hz

Cooling capacity L35/L35 : 500W

Rated Refrigerating input power : 315W

Rated Refrigerating current : 1.43

Maximum Refrigerating current : 2.05A

Air Volume of Inner Circulation : 135m3/h

Noise : 54dB

Contact Now

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

1. Outdoor cabinet air conditioner introduction

The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering.

The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

2. Technical parameter

Item Name Unit Parameter
Dimension and installation Body outline dimension (height*width*depth ) mm 550*320*169

Outline dimension including

flange(height*width*depth )

 mm 582*352*169
Weight Kg 12.7
Installation method Door Mounted
Application environment Outdoor
Environment and protection Working environment temperature ℃ -40 to +55
Noise dB(A) 54
IP grade IP55
Refrigerant R134a
ROHS certification yes
Performance Input voltage range 220±15%VAC~60Hz
Refrigerating capacity(L35/L35) W 500
Rated Refrigerating input power(L35/L35) W 315
Rated Refrigerating current (L35/L35) A 1.43
Maximum Refrigerating current A 2.05
Heat capacity(optional) W 500
Air Volume of Inner Circulation m3/h 135

3. Applications

The environment of outdoor cabinet is dusty and humid, in order to ensure the clean environment of equipment, it is necessary to use air conditioner to isolate the inside of cabinet from the outside environment. Prevent the entry of foreign matters. At the same time, it can prevent the equipment from being damaged by overheating. Ensure that the equipment has a good operating environment.

4. Feature

(1) Compact structure and small volume
(2) Using famous compressor, because the cabinet air conditioning is generally need to work for a long time, the compressor requirements for air conditioning are very high.
(3) Environmental refrigerant
(4) Low noise
(5) Microcomputer digital display: the cabinet belongs to the unattended type. In order to remotely view the operation status of the equipment and the cabinet temperature, and avoid manually starting the air conditioner on site and setting the temperature point, the air conditioner cabinet has the functions of setting the cabinet temperature, fault code display, low voltage, overheat and over-current fault protection and alarm, etc.

5.​ Installation size drawing

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

6. Installation Size Drawing

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

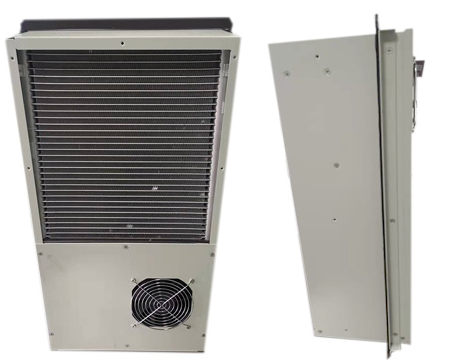

7. Air conditioner picture

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

8. Production Process

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant

AC220V 60Hz 500W Outdoor Cabinet Air Conditioner With Environmental Refrigerant
