Outdoor Telecom Enclosure with Two Bay, One Bay for 19" Equipment,
One Bay for MDF DDF ODF, ET9565150-EF
Introduction
The outdoor telecom enclosure is made of metal material, directly under the influence of weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment, MDF, ODF, etc. can be installed inside the enclosure. The outdoor telecom enclosure can provide reliable mechanical and environmental protection for the normal operation of internal equipments.
Application
The outdoor telecom enclosure is mainly used in wireless communication base stations, FTTX access network, electricity, rail transport, monitoring, security, etc.
Features
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● Two compartments are separated from each other
● Anti-theft multi-point lock system, excellent keyhole protection device
● Perfect air duct design to avoid cold and hot gas mixed flow effectively
● Good sealing performance, water proof, dust proof, IP55
● Professional outdoor anti- corrosion powder coating, strong weather resistance
● Double layer design, with high performance thermal insulation material
Specifications
● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET9565150-EF |
| Size(H×W×D) | 1500×950×650mm |
| Installation | Ground installed |
| Compartment | Two compartment, one for equipment , the other for MDF |
| Door | Equipment bay with one front door MDF bay with one side door |
| Material | Galvanized steel, double wall, with insulation. |
| Structure | ● Anti-theft three-point lock mechanism ● Door stopper / wind lock is installed on the inside of the cabinet door ● Door frame with seal rubber strip, attached to the inner side of the door, waterproof and dustproof ● The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced. ● Include standard 19“ rack inside equipment compartment, high universality. Special rack or electrical lining board inside the cabinet can be custom made. ● Equipped with cable manager ● Cable inlets at the bottom of cabinet |
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification |
| Color | Outdoor polyester light grey |
| Ingress Protection | IP55 or custom made |
| Working Temperature | -40°C～+75°C |
| PDU | AC/DC PDU | Grade B lightning proof; AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Maintenance socket*1. The PDU can be custom made. |
| ODF | Optional | 12 cores, 24 cores, 48 cores, 96 cores ODF system |
| MDF | Optional | 50 pairs, 100 pairs |
| Cooling Method | Compressor Air Conditioner | Optional |
| Heat Exchanger | Optional |
| TEC Air Conditioner | Optional |
| Fan | 4pcs DC48V fan |
| Other | Illumination | LED light, 48VDC |

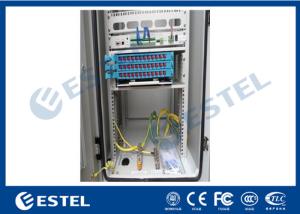

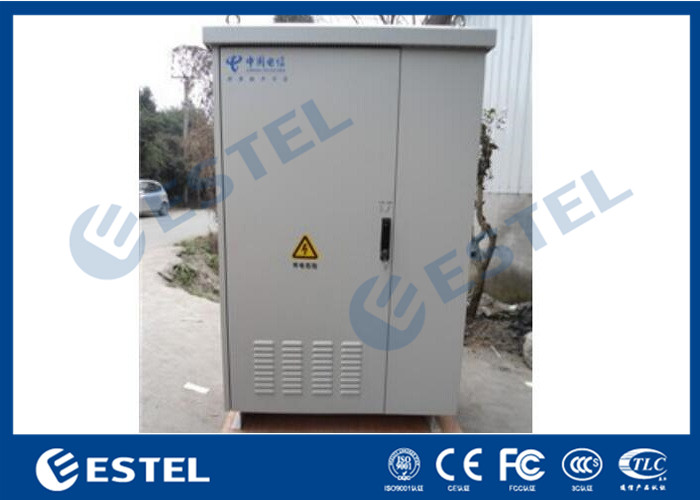

Pictures
